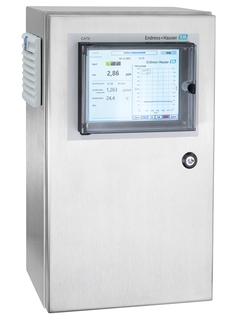

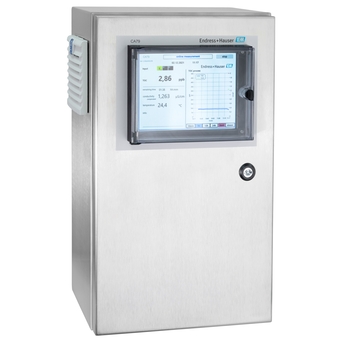

TOC determination by UV digestion and measurement of the differential conductivity
尺寸
Housing: 500 x 290 x 200 mm 19.68 x 11.41 x 7.87 in
设计
Stainless steel housing; IP 42 (standard), IP54 (optional)
过程温度
< 50 °C (122 °F)
环境温度
10 to 45 °C (50 to 113 °F)
过程压力
max. 0.5 bar (7.25 psi)
探头处的流速
Min. 5 ml/min (0.17 fl.oz/min)
探头的一致性
max. conductivity 2 μS/cm, particle free
特殊要求
The operating concept and data storage meet the requirements of 21 CFR, Part 11 UV reactor with continuous function monitoring
应用
Determination of total carbon in ultrapure water applications, e.g. in the lifescience industry, that meet the following conditions: Conductivity < 2 μS/cm pH range: neutral
电源
100/240 V AC, 47 - 63 Hz
输出
0/4 to 20 mA, galvanically isolated
输入
1 to optional 3 measuring channels Optional control input 24 V (for 1 channel instruments)
